HBP1800 MT Series (3/5.2KW)

Home Solar Energy Storage System 3072Wh/5120Wh

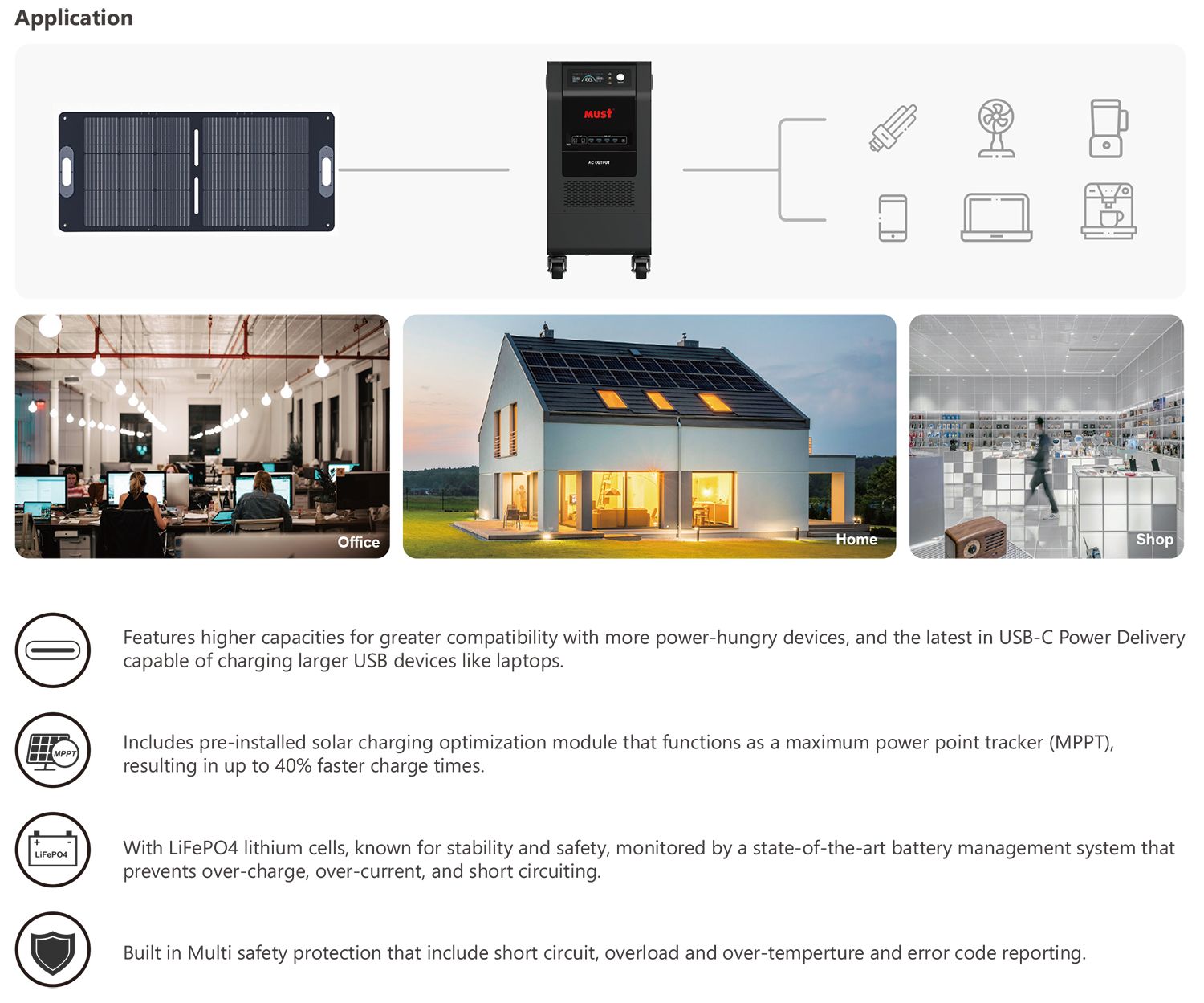

The HBP1800 MT power station is an exceptional device that boasts a 3072Wh or 5120Wh LiFePO4 battery pack and a pure sine wave solar inverter rated at 3000W or 5200W. Unlike its competitors, this power station is capable of powering your entire party, family camping trip, cabin workshops, or even your entire home for up to two days during unexpected power outages. With 11 outlets and a maximum capacity, it can easily power all your devices, including laptops, air conditioners and more.

Description

Description

+ 3072Wh / 5120Wh LiFePO4, 6000+ Cycles @ 80% DOD,25°C

+ 3KW/5.2KW Pure Sine Wave Output

+ Flexible UPS Mode(24/7)

+ Movable Power Station

+ Off-grid Energy Storage

+ Multiple Devices Can Be Loaded Simultaneously

+ Flexible Recharging Way To Keep Your HBP1800 MT Always On

+ App Remote Control

Specification:

MODEL HBP18-3024MT HBP18-5248MT
Inverter
Rated power 3000W 5200W
Output voltage waveform Pure sine wave
Output voltage regulation 230Vac ±5%
Output frequency 50Hz / 60Hz (±0.2Hz)
Peak efficiency 90% 93%
Nominal DC input voltage 24Vdc 48Vdc
Standby Consumption < 25W
PV Input
Max solar power input 1800W 5000W
PV max charging current 60A 100A
Combined charging current 80A 140A
Max efficiency 98.0% max
PV array open circuit voltage 145Vdc 450Vdc
PV Array MPPT Voltage Range 30~120Vdc 150~430Vdc
AC Input
AC input voltage 230Vac ±5%
Acceptable input voltage range 90-280Vac 170-280Vac
Nominal input frequency 50Hz / 60Hz (Auto detection)
Transfer time 10ms typical (UPS, VDE); 20ms typical (APL)
AC Charge
Charging current @ Nominal input voltage 20A/30A 80A
Charging Algorithm 4-step (Li)
Output
AC output 230Vac (Socket *4pcs)
Type-C DC output*1pcs
USB (5V 2.4A) DC output*4pcs
USB (12V 1A) DC output*2pcs
Lithium Battery
Energy 3072Wh 5120Wh
Nominal voltage 25.6V 51.2V
Battery capacity 120Ah 100Ah
Protection board 50A 30-100A
Standard charging & discharge current 50A 100A
Operation temperature – Charge 10~50℃
Operation temperature – Discharge -20~55℃
Dimension
Product Size (LxWxH) (mm) 277*452*509mm
